100% Spherical Alloy, 56%Ag, High Copper, Non Gamma II

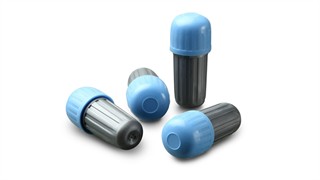

Spherodon+ is a single composition ultra -fine spherical ternary.
This formulation utilizes modern resin technology that offers unique dimensional stability and resistance to corrosion.
• Special controlled compositions are available and developed according to design procedures in compliance to ISO 13485:2012
Physical Properties
Spherodon + exhibits high compressive strength due to its unique formulation. This is achieved by spraying inert nitrogen under high pressure to produce a fine spherical powder.
Composition: Ag 56%, Sn 28.8%, Cu 15.2%
Particle Shape: 100% spherical
Compressive Strength (24hr): > 350 MPa
Dimensional Change: ≤ 0.15%
Creep: ≤ 0.75%
Conforms to: ISO 24234
O-130471 / O-131471
O-130472 / O-131472
O-130473 / O-131473
O-130491 / O-131491
O-130492 / O-131492
O-130493 / O-131493
50 Capsules, 1 SPILL
50 Capsules, 2 SPILL
50 Capsules, 3 SPILL
500 capsules, 1 SPILL
500 capsules, 2 SPILL
500 capsules, 3 SPILL
